API Key Authentication

API Key Authentication is one of the simplest methods to protect Drupal REST APIs. Once you have generated API Keys for all your users, you can then use those keys to secure access to your Drupal REST APIs.

You can do so by sending the user’s Drupal username and API key in the Authorization header of your every API request. The Drupal API Authentication module will then authenticate the request based on the username and corresponding API key. This module is compatible with Drupal 7, Drupal 8, Drupal 9, Drupal 10, and Drupal 11.

 Download

Setup Video:

Pre-requisites: Download and Installation:

• Download & install the Drupal REST & JSON API Authentication module.
• REST UI: This module provides you with a user interface for configuring the REST module.
• Enable the following Web Services modules from under the Extend section(/admin/modules) of your Drupal site:
  • REST UI
  • RESTful Web Services
  • Serialization



Steps to setup API Key based Authentication in Drupal:

• For better understanding, we will be taking an example of adding API Key-based authentication to the Create User API for Drupal.
• Please note that the /entity/user API of Drupal is used to create a user in Drupal.

Enable the API and assign methods and operations as follows:

• The first step is to enable the API and also assign methods and operations allowed on that particular API. This can be done using the REST UI module or you can simply modify the config.
• To enable the API using the REST UI module, click on the Configure button of the REST UI module(as shown below)



• Considering our example, we have to enable the /entity/user API. Enable this API using the Enable option in front of it.



• Now, as our goal is to create a user in drupal, select the following configs:
  • Method: POST
  • Format: json
  • Authentication provider: rest_api_authentication.
• Selecting rest_api_authentication will allow the miniOrange REST API Authentication module to authenticate your /entity/user API. Click on the Save Configuration button to continue.



Create an API Key user field in Drupal:

Note: If you are using free version of the module you can skip this step.

In this step, we will set up how the API key is used to authenticate the API calls. In order to do so, first we need to create a User Attribute field for storing an API key.

• Navigate to the manage field (/admin/config/people/accounts/fields) tab of Drupal.
• To add the field, click on the Add field button.

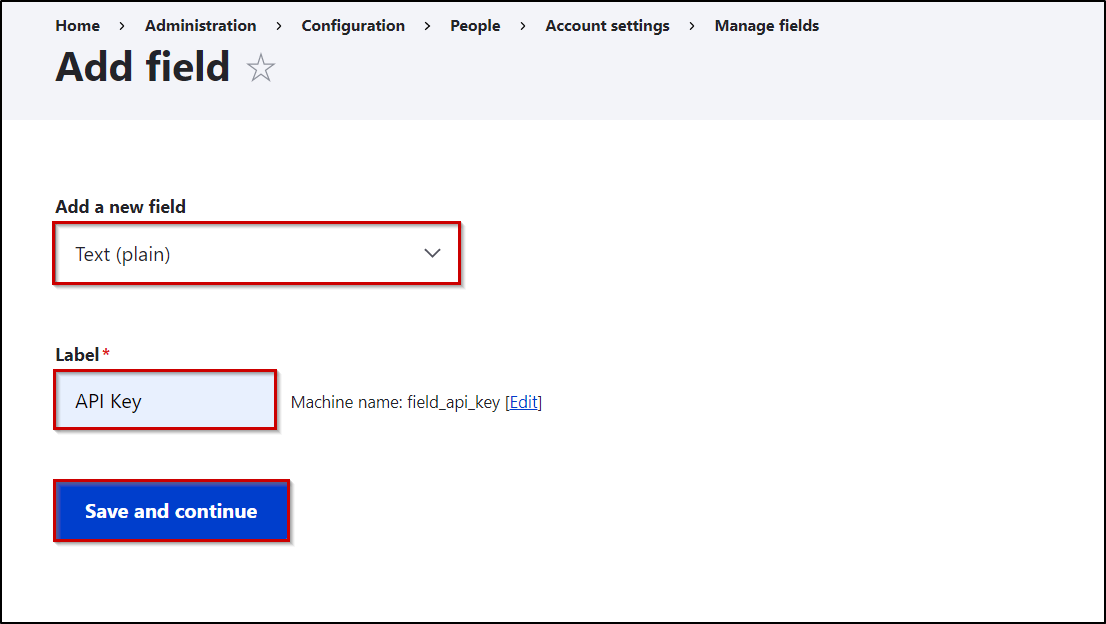

• Now from the Add a new field dropdown, select the Text (Plain) option and enter API Key in the label textfield. Now, click on the Save and continue button to save your settings.
• Please ensure that the machine name of the user attribute should be field_api_key.



• Now proceed with clicking on the Save field settings and then on the Save Settings button to complete the field creation.





• You can now see an additional API Key textfield present in your user profile.

Setup API Key based Authentication:

• In this step, we will generate an API Key, to do so please navigate to the API Authentication tab of the REST API Authentication Module. (/admin/config/people/rest_api_authentication/auth_settings)
• Select the Enable Authentication checkbox and click on Save Settings.
• To enable the API Key-Based Authentication, select the API Key radio button.
• In the same screen, you can generate the API key for a particular user or you can generate the API key for all the users at once.
• Right now we will generate the API key for a single user only.
• In the Enter username text field, enter the username for which you want to generate the API key and click on the Generate API key for this user button.
• You can now view the generated API Key from the API Key field of your user profile.



• Keep the API key handy as it will be used later while authenticating the API.

Grant Drupal roles permission to create a user in Drupal:

• If you require, you can also grant non-admin Drupal roles permission to create a user in Drupal. You can do so by assigning Drupal roles to the Administer users permission from under the permission section (/admin/people/permissions) of your Drupal site.



That’s it!!!

• Now let’s try to create a user in Drupal through an API call using an API key for authentication.

Example:

• To create a user in Drupal you have to make a POST request along with the username of the user and API key issued by the miniOrange REST API Authentication Module. The value of the username and API key must be in base64encoded format.  You can refer to the below format to make a call.

  Request: POST  <your_drupal_base_url>/entity/user?_format=json
  Header: Authorization: Basic base64encoded <username:api_key>
               Accept: application/json
               Content-Type: application/json

  Body:

  {
              "name": [
                          {"value": "<username>"}
                  ],
             "mail": [
                          {"value": "<email>"}
                  ],
              "pass":[
                          {"value": "<password>"}
                  ],
              "status":[
                          {"value": "1"}
                  ]
  }

  CURL Request Format-

  curl --location --request POST  ‘<your_drupal_base_url>/entity/user?_format=json' \
  --header 'Accept: application/json' \
  --header 'Content-Type: application/json' \
  --header 'Authorization: Basic base64encoded<username:API key>’ \
  --data-raw '

  {
      "name": [
          {"value": "Username"}
      ],
      "mail": [
          {"value": "email"}
      ],
      "pass":[
          {"value": "Password"}
      ],
      "status":[
          {"value": "1"}
      ]
  }'

• You can also refer to the image of the Postman request added below:



• A successful response returns the user information that you have created. (please refer to the image below)



• If you receive any error in the response, you can refer to the below table for the error description and possible solutions.

Error Response:
